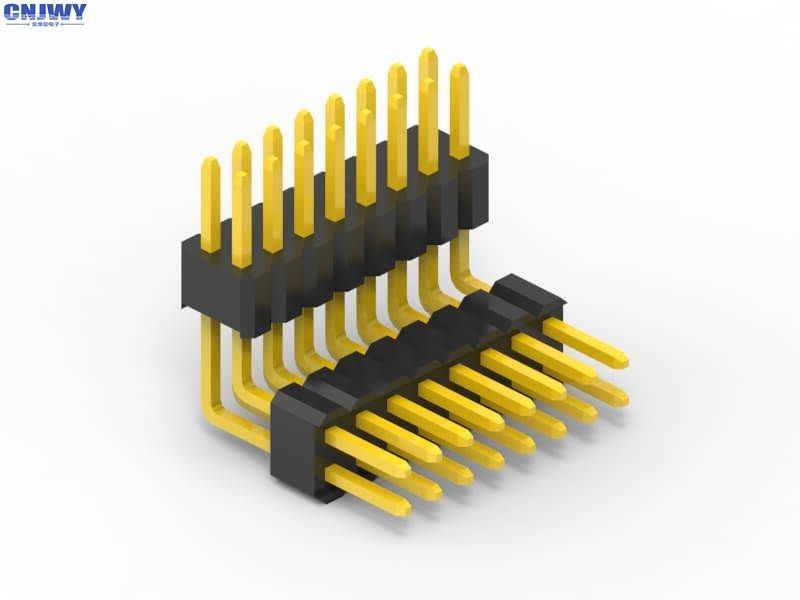

2-40 Pins PCB Header Connector with -40C To 105C Operation Temperature and 1.0AMP Current Rating

Product Description:

The Durable 20 Pin PCB Header Connector 1mm Pitch PA6T Dual Row Male Pin Header is a reliable and high-quality cable joint connector that is ideal for various electronic applications. This heavy-duty rectangular connector is designed to provide secure and stable connections between PCBs and cables, ensuring optimal performance and durability.

With an insulation resistance of 1000MΩ Min, this PCB header connector offers excellent electrical insulation properties, reducing the risk of short circuits and ensuring safe operation. The contact material used in this connector is a high-quality copper alloy, known for its excellent conductivity and durability.

The current rating of this connector is 1.0AMP, making it suitable for low to moderate power applications. Whether used in industrial machinery, consumer electronics, or automotive systems, this connector can reliably handle the electrical demands of various devices.

Constructed with PA6T UL 94-V0 insulation material, this PCB header connector offers superior flame retardant properties, ensuring safety in case of any electrical faults. The robust construction of the connector enhances its durability and longevity, making it a cost-effective solution for long-term use.

Overall, the Durable 20 Pin PCB Header Connector 1mm Pitch PA6T Dual Row Male Pin Header is a versatile and dependable connector that meets the demands of modern electronic systems. Its high insulation resistance, quality contact material, suitable current rating, and flame-retardant insulation material make it an ideal choice for a wide range of applications.

Features:

• Product Name: PCB Header Connector
• Pitch: 1.00mm(0.039'')
• Contact Resistance: 20mΩ Max
• Product Category: PCB Header Connector
• Pin Available: 2 Pins to 40 Pins
• Contact Finish: Gold Over Nickel

Technical Parameters:

Applications:

JWY's ST127-XXXXXX PCB Header Connector is a versatile and durable product designed for various product application occasions and scenarios. This connector is ideal for use in Circuit Board Wire Connectors, Board To Board Connector, and Bed Frame Connectors, among other applications.

Manufactured in China, this product meets high-quality standards with certifications including UL, SGS, RoHs, and REACH. The minimum order quantity for the ST127-XXXXXX connector is 2Kpcs, and the price is open for negotiation. Payment terms accepted are T/T and Western Union, providing flexibility for customers.

With a supply ability of 100000pcs per day, JWY ensures efficient delivery times ranging from 7 to 15 working days. The packaging details include PE/Tray/Tube/Tape/Reel Packaging, guaranteeing safe transportation of the product to your location.

The ST127-XXXXXX PCB Header Connector features a current rating of 1.0AMP, insulation resistance of 1000MΩ Min, and contact resistance of 20mΩ Max. The standard color for this connector is Black, but customization options are available to meet specific design requirements.

Named the "Durable 20 Pin PCB Header Connector 1mm Pitch PA6T Dual Row Male Pin Header," this product is designed to provide reliable and secure connections for various electronic devices and systems. Its high-quality construction and performance make it a preferred choice for professionals in the industry.

Support and Services:

Our Product Technical Support and Services for the PCB Header Connector include:

- Assistance with product installation and configuration

- Troubleshooting support for any technical issues

- Product warranty information and claims processing

- Guidance on product compatibility and specifications

- Recommendations for proper maintenance and care of the connector

Packing and Shipping:

Product Packaging:

The PCB Header Connector is carefully packaged in a sturdy cardboard box to ensure safe delivery. Each connector is individually wrapped in protective material to prevent damage during transit.

Shipping:

Orders for the PCB Header Connector are processed promptly upon receipt. We use trusted shipping carriers to deliver your product in a timely manner. Customers can track their orders using the provided tracking information for added convenience.

FAQ:

Q: What is the brand name of the PCB Header Connector?

A: The brand name of the PCB Header Connector is JWY.

Q: What is the model number of the PCB Header Connector?

A: The model number of the PCB Header Connector is ST127-XXXXXX.

Q: What certifications does the PCB Header Connector have?

A: The PCB Header Connector is certified by UL, SGS, RoHs, and REACH.

Q: What is the place of origin for the PCB Header Connector?

A: The PCB Header Connector is manufactured in China.

Q: What is the minimum order quantity for the PCB Header Connector?

A: The minimum order quantity for the PCB Header Connector is 2,000 pieces.

Q: What are the payment terms for purchasing the PCB Header Connector?

A: The payment terms for purchasing the PCB Header Connector are T/T and Western Union.

Q: What is the supply ability of the PCB Header Connector?

A: The supply ability of the PCB Header Connector is 100,000 pieces per day.

Q: What is the delivery time for the PCB Header Connector?

A: The delivery time for the PCB Header Connector is 7 to 15 working days.

Q: What are the packaging details for the PCB Header Connector?

A: The PCB Header Connector is packaged in PE, Tray, Tube, Tape, or Reel Packaging.
